StackMaster Controller R1 Pro

StackMaster R1 Pro controller for StackMaster R+S

The StackMaster R1 Pro controller is the enhanced version of the StackMaster R1 controller. Is equipped with an innovative technology. Thanks to an integrated WLAN system, it can be operated directly with any terminal device that has Wi-Fi. This also eliminates the need for cumbersome software installation. The controller can also control any commercially available linear slide. Provides more functionality for Video and Timelapse usage. Furthermore, the system can controll RGB LED light systems, i.e. a dome luminaire with RGB ring light for indirect lighting. The ring light can be continuously adjusted in brightness and color temperature to the desired recording situation. Via an optional relay box external light systems can be triggert.
Optionally available sensors such as proximity switches, light barriers, IR barriers, etc. can be connected to the controller. These are used to start the stack function automatically. The number of the function can be entered.

The StackMaster R1 Pro controller is available in two versions: a high power with up to 3A for NEMA24 stepper motors or as a low power version with up to 1,2A for NEMA17 stepper motors.

The controller contains all functions that are important and useful for stacking outdoors, such as:

  • Manual movement of the carriage - slow, medium and fast
  • Stacks with fixed starting point. End point can be determined manually by STOP button;
  • Stacks with fixed start and end point;
  • Singel steps at the end of each stack;
  • Video function;
  • Video stacks;
  • Video & Timelapse motion profiles;
  • Timelapse;
  • The controller can also control any commercially available linear slide like WeMacro, Cognisys etc. be default;
  • Supports Video slider;
  • Integrated step size calculator;
  • Database for different sets;
  • Output of a protocol about the made stack
  • OTA software and firmware update possible.
  • Direct RGB LED controll or via external optinal relay box standalone LED solutions.
  • and much more.

 StackMaster Revolution R1 Pro Photography & Project by panoplace.com & Stefan Dungs

The new Pro version can also be used with the StackMaster Revolution Kit. This is an electronically controlled macro rail system for outdoor focus stacking. It was developed especially for outdoor use. Due to consequent weight reduction and direct drive, the outdoor photographer has a light, very precise and in handling unique device at his disposal.

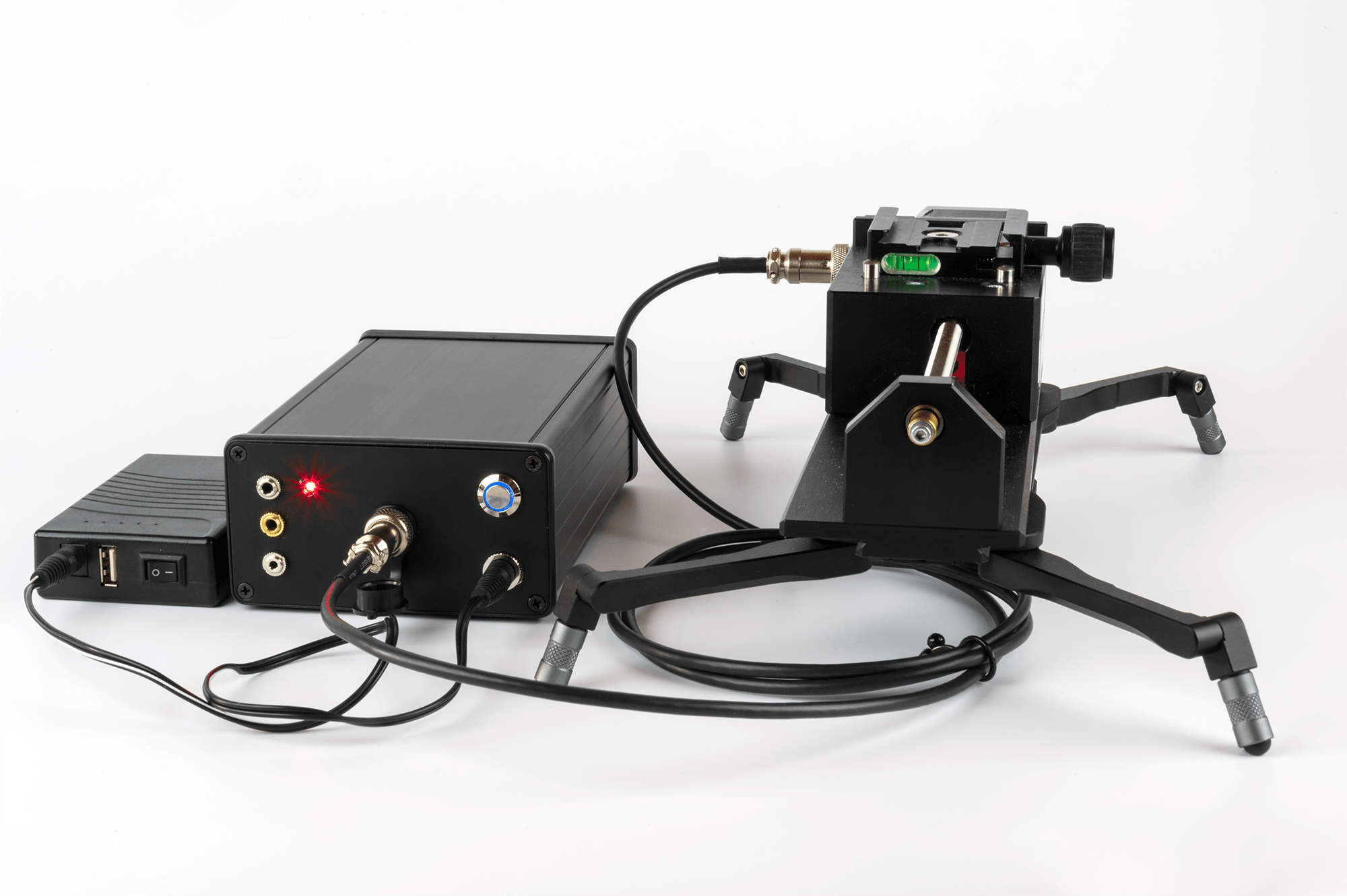

StackMaster Revolution Pro Kit Photography & Project by panoplace.com & Stefan Dungs

The low profile stand is not part of the StackMaster Revolution Pro Kit, but optional available upon request.

The mechanical connection at the bottom of the carriage consists of a dovetail rail (compatible with standard clamp holders). One tripod thread with 1/4" and one tripod thread with 3/8". The mounting options on the top of the slide are compatible with our products. Thus, either the hole pattern (2 threads and 2 dowel pins) or the supplied quick-change clamp can be used. The concept has been extensively tested in outdoor use and optimized through the experience of the development team. The linear slide can be operated with our controllers. Optionally available are 2 controllers. For outdoor use only the controller R1 Pro (see accessories) is recommended. Various sensors (optionally available) can be connected to this controller to trigger the stacking process.

The StackMaster R1 Pro in compination with the StackMaster Revolution slide, sold as StackMaster Revulution Pro Kit and provides the following features:

  • Software-controlled linear slide for the convenient production for Focus-Stacking, Timelapse & Video
  • Software integrated in the controller.
  • Mountable on Stonemaster tripod or lifting table, as well as on standard tripods
  • Size: 70 x 262 x 60 (at motor flange) 53mm (over carriage) mm (W x L x H)
  • Travel: 115 mm
  • Max. Speed: approx.2mm / sec.
  • Smallest step size for Stackmaster Revolution: 1µm
  • Smallest step size for Stackmaster Studio: 1nm
  • Vertically the StackMaster can move ?? kg (to be determined)
  • The controller can be used to control all cameras that have a connection for a remote shutter release. To connect the controller to the camera you need a control cable (optionally available, see accessories). An IR remote shutter release is also available.
  • A reference point is stored when a limit switch is approached. This means that collisions at the end of the guide are no longer possible.
  • A high power with up to 3A for NEMA24 stepper motors or a low power version with up to 1,2A for NEMA17 stepper motors are available.

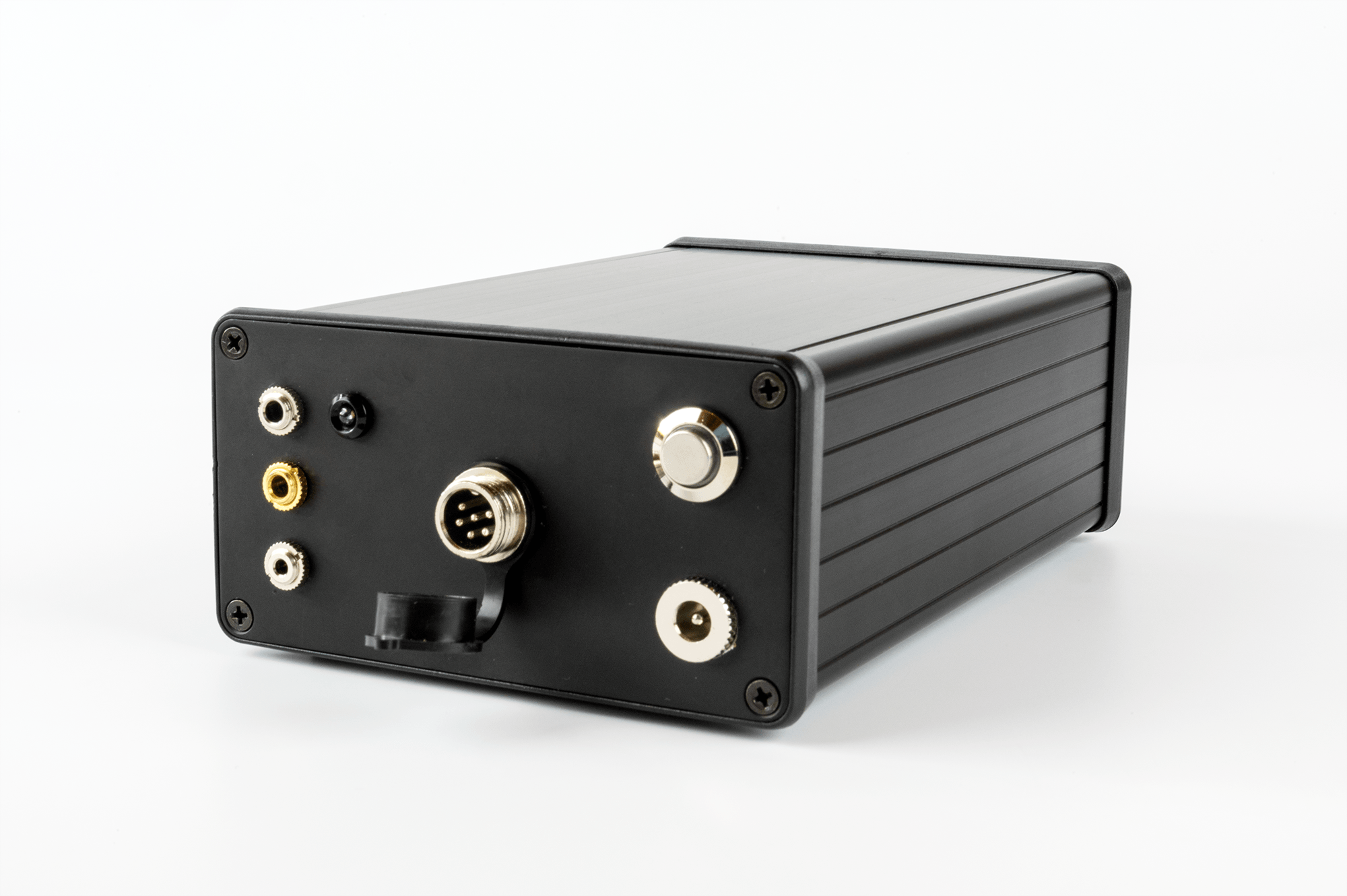

StackMaster R1 Pro Controller Photography & Project by panoplace.com & Stefan Dungs

As accessories we deliver a 12V/3000mA battery with charge level indicator, USB connector and charger (for mobile use) or a power supply (for studio use).

One battery charge lasts 1-3 days. This is possible due to a very energy-saving design of the controller and the software.

  • Software integrated in the controller
  • WLAN: IEEE 802.11 b/g/n Wi-Fi
  • Size: 175x106x55 mm (L x W x H)
  • Weight: 470g

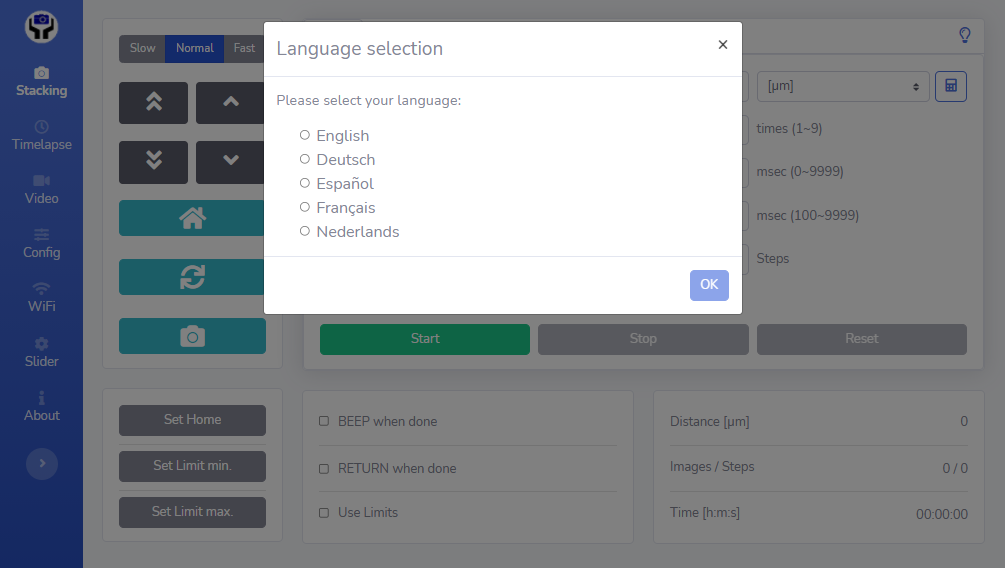

  • Supported languages: German, English,French,Italian,Dutch,Spanish
  • Power supply: 12-24V
  • 1 GX-12 connectors to attach stepper motors, up to 1,2A (NEMA 17 class) or 1 GX-16 connectors to attach stepper motors, up to 3A (NEMA 24 class);
  • Connector 2,5mm jack for camera remote shutter release;
  • Connector 3,5mm jack for div.sensors;
  • Connector 3,5mm jack for RGB-LED direct controll or via external relay box;
  • Acustical and optical feedback system;
  • The controller can be used to control all cameras that have a connection for a remote trigger. To connect the controller with the camera you need a control cable (optionally available, see under accessories).
  • An IR remote trigger is also available.

Furthermore, he also controls the RGB dome luminaire in brightness and color temperature. The RGB dome is equipped with a LED ring light with 60 LED's. Each LED is individual controllable.

Photography & Project by Panoplace.de & Stefan Dungs Photography & Project by panoplace.com & Stefan Dungs

The circle is split in to virtual 1/8 segments, each segment can be controlled in brightness and color temperature.

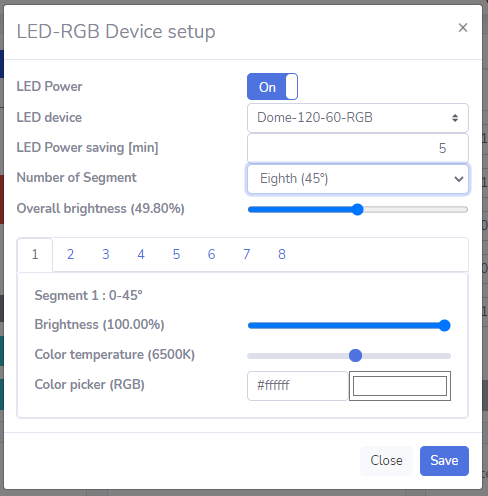

LED-RGB device setup Photography & Project by panoplace.com & Stefan Dungs

The controller contains all functions that are important and useful for stacking outdoors or Video slides for Video or Timelapse purpuse.

Timeslapse Photography & Project by panoplace.com & Stefan Dungs
